LM78L05N3 - Low Current Positive Voltage Regulator

LM78L05N3 Description

CYStech Electronics Corp.Low Current Positive Voltage Regulator LM78LXXN3 Spec.No.: C515N3 Issued Date : 2018.04.12 Revised Date : 2018.04.23 Page.
SOT-23 The LM78LXXN3 series of positive regulators are available in the SOT-23 package and with 5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V and 24V fixed out.

LM78L05N3 Features

* Internal Short-Circuit Current Limiting
* Internal Thermal Overload Protection
* No External Components Required
* Pb-free lead plating and halogen-free package Ordering Information Device LM78LXXN3-A-T1-G LM78LXXN3-B-T1-G Output Voltage Tolerance ±3% ±5% Packa

LM78L05N3 Applications

* These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is

📥 Download Datasheet

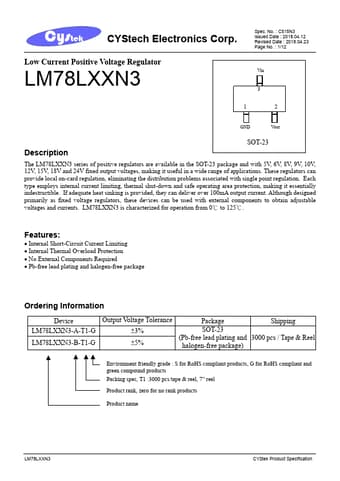

Preview of LM78L05N3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM78L05N3
Manufacturer
CYStech
File Size
1.26 MB
Datasheet
LM78L05N3-CYStech.pdf
Description
Low Current Positive Voltage Regulator
