CM2031 - HDMI Receiver Port Protection and Interface Device

CM2031 Description

www.DataSheet4U.com Issue X-1 CM2031 HDMI Receiver Port Protection and Interface Device .
The CM2031 HDMI Receiver Port Protection and Interface Device is specifically designed for next generation HDMI Sink interface protection.

CM2031 Features

* HDMI 1.3 compliant Supports thin dielectric and 2-layer boards Minimizes TMDS skew with 0.05pF matching Long HDMI cable support with integrated I2C accelerator Active te

CM2031 Applications

* PC and consumer electronics Digital TV, PC monitors and projectors Electrical Schematic 5V_SUPPLY TMDS_D2+ TMDS_GND TMDS_D2­ TMDS_D1+ TMDS_GND TMDS_D1­ TMDS_D0+ TMDS_GND TMDS_D0­ TMDS_CK+ TMDS_GND TMDS_CK­ 5V_SUPPLY LV_SUPPLY 5V_SUPPLY LV_SUPPLY DYNAMIC PULLUP DDC_CLK_OUT

📥 Download Datasheet

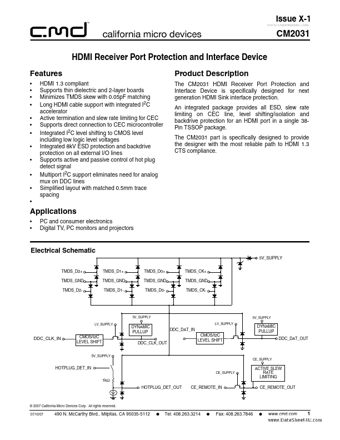

Preview of CM2031 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CM2031
Manufacturer
California Micro Devices
File Size
682.51 KB
Datasheet
CM2031_CaliforniaMicroDevices.pdf
Description
HDMI Receiver Port Protection and Interface Device
