CM20-12A Datasheet, Transistor, ASI

CM20-12A Features

• Transistor
• Internal Input Matching Network
• PG = 6.2 dB at 20 W/470 MHz
• Omnigold™ Metalization System
• Common Emitter Configuration PACKAGE STYLE .500 6L FL

PDF File Details

Part number:

CM20-12A

Manufacturer:

ASI

File Size:

43.21kb

Download:

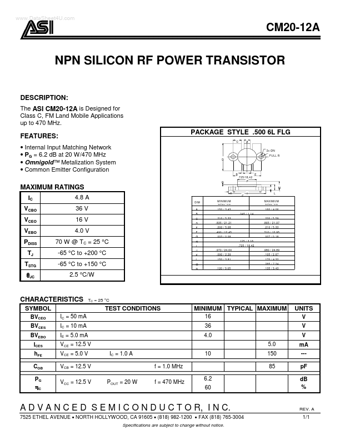

📄 Datasheet

Description:

Npn silicon rf power transistor. The ASI CM20-12A is Designed for Class C, FM Land Mobile Applications up to 470 MHz. FEATURES:

Internal Input Matching Ne

CM20-12A Application

• Applications up to 470 MHz. FEATURES:
• Internal Input Matching Network
• PG = 6.2 dB at 20 W/470 MHz
• Omnigold™ Metalizat

TAGS

CM20-12A

ASI
