CL432 - 1.25VPrecision Adjustable Shunt Reference / Amplifier

Product Overview

Calogic LLC

Datasheet Details

Part number	CL432
Manufacturer	Calogic LLC
File Size	63.22 KB
Description	1.25VPrecision Adjustable Shunt Reference / Amplifier
Datasheet	CL432 Datasheet

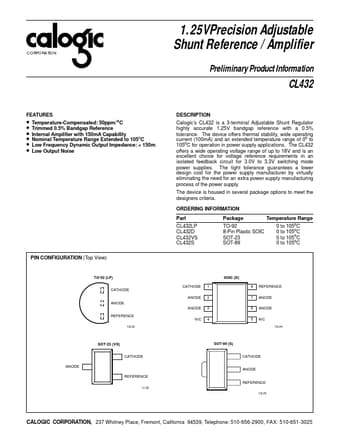

Additional preview pages of the CL432 datasheet.

Product details

Description

o Temperature-Compensated: 50ppm/ C Trimmed 0.5% Bandgap Reference Internal Amplifier with 150mA Capability Nominal Temperature Range Extended to 105oC Low Frequency Dynamic Output Impedance: < 150m Low Output Noise Calogic’s CL432 is a 3-terminal Adjustable Shunt Regulator highly accurate 1.25V bandgap reference with a 0.5% tolerance.The device offers thermal stability, wide operating current (100mA) and an extended temperature ran
