CL42

Thin Film Limiter Module

MACOM

CL42 Features

* Very Wide Bandwidth

* Good Suppression of Even Order Harmonics

* Low Insertion Loss: 3.5 dB (typ.) Description The L42 signal limiter is a discrete hybrid design, which uses thin film manufacturing processes for accurate performance and high reliability. This design uses Schottky bridg

CL42 General Description

The L42 signal limiter is a discrete hybrid design, which uses thin film manufacturing processes for accurate performance and high reliability. This design uses Schottky bridge quad and anti-parallel diodes, which provide consistent limiting levels over a broadband frequency range. Both TO-8 and SMT.

CL42 Datasheet (668.37 KB)

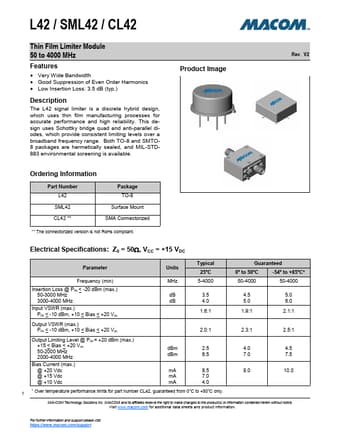

CL42 Datasheet Preview — Preview of CL42 PDF

Datasheet Details

Part number:

CL42

Manufacturer:

MACOM

File Size:

668.37 KB

Description:

Thin film limiter module.
