CWB5341 Datasheet, Switch, Calogic LLC

CWB5341 Features

  • Switch DESCRIPTION The CWB5341 is a Dual Monolithic Analog Switch. Designed utilizing "T" switching techniques this device gives exceptionally low crosstalk and very high OFF isolation. The CW

PDF File Details

Part number:

CWB5341

Manufacturer:

Calogic LLC

File Size:

36.61kb

Download:

📄 Datasheet

Description:

Dual monolithic cmos/dmos t configuration analog switch. The CWB5341 is a Dual Monolithic Analog Switch. Designed utilizing "T" switching techniques this device gives exceptionally low cross

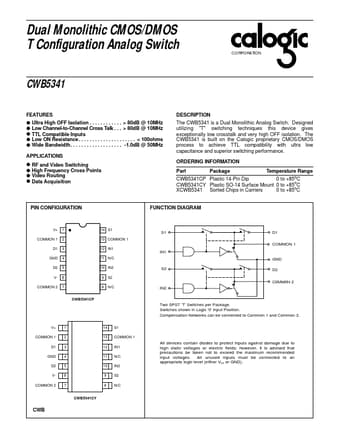

Datasheet Preview: CWB5341 📥 Download PDF (36.61kb)
Page 2 of CWB5341 Page 3 of CWB5341

CWB5341 Application

  • Applications FUNCTION DIAGRAM V+ COMMON 1 D1 GND D2 VCOMMON 2 1 2 3 4 5 6 7 CWB5341CP 14 S1 13 COMMON 1 S1 D1 COMMON 1 12 IN1 11 N/C 10 IN2 9
