XDPAD5100 Dual Pico Amp Diodes

Calogic LLC

Description

Dual Pico Amp Diodes CORPORATION DPAD1 / DPAD2 / DPAD5 / DPAD10 / DPAD20 / DPAD50 / DPAD100 SSTDPAD5 / SSTDPAD10 / SSTDPAD20 / SSTDPAD50 / SSTDPAD100.
Calogic’s ultra low leakage dual pico amp diodes out perform conventional diodes for applications where reverse current (leakage) is critical and must.

📥 Download Datasheet

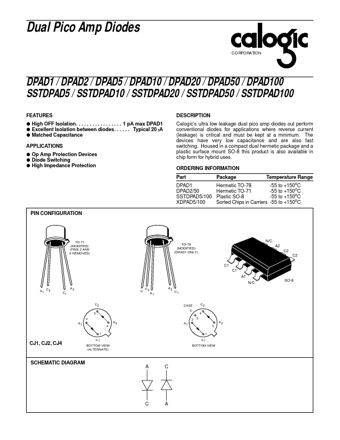

XDPAD5100 Datasheet Preview — Preview of XDPAD5100 PDF

Datasheet Specifications

Part number: XDPAD5100
Manufacturer: Calogic LLC
File Size: 32.30 KB
Datasheet: XDPAD5100_CalogicLLC.pdf
Description: Dual Pico Amp Diodes

Features

* High OFF Isolation
* . . 1 pA max DPAD1 Isolation between diodes
* . Typical 20 fA
* Excellent
* Matched Capacitance
* Op Amp Protection Devices
* Diode Switching

Applications

* where reverse current (leakage) is critical and must be kept at a minimum. The devices have very low capacitance and are also fast switching. Housed in a compact dual hermetic package and a plastic surface mount SO-8 this product is also available in chip form for hybrid uses. ORDERING INFORMATION P
