XDP710-002 - Hot-swap Controller

Description

XDP710 is a wide input voltage Hot Swap and System monitoring Controller IC that drives a single or multiple parallel N-Channel MOSFETs.

In addition to a controlled turn ON, XDP710 provides continuous system health monitoring and communication to the main MCU via PMBus interface.

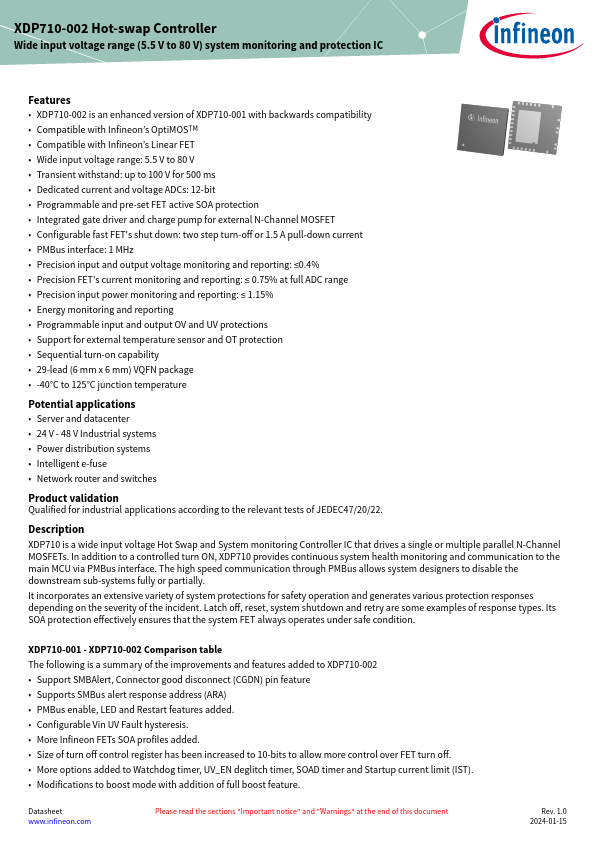

Features

  • XDP710-002 is an enhanced version of XDP710-001 with backwards compatibility.
  • Compatible with Infineon’s OptiMOSTM.
  • Compatible with Infineon’s Linear FET.
  • Wide input voltage range: 5.5 V to 80 V.
  • Transient withstand: up to 100 V for 500 ms.
  • Dedicated current and voltage ADCs: 12-bit.
  • Programmable and pre-set FET active SOA protection.
  • Integrated gate driver and charge pump for external N-Channel MOSFET.
  • Configurabl.

📥 Download Datasheet

Datasheet preview – XDP710-002

Datasheet Details

Part number XDP710-002
Manufacturer Infineon
File Size 1.91 MB
Description Hot-swap Controller
Datasheet download datasheet XDP710-002 Datasheet

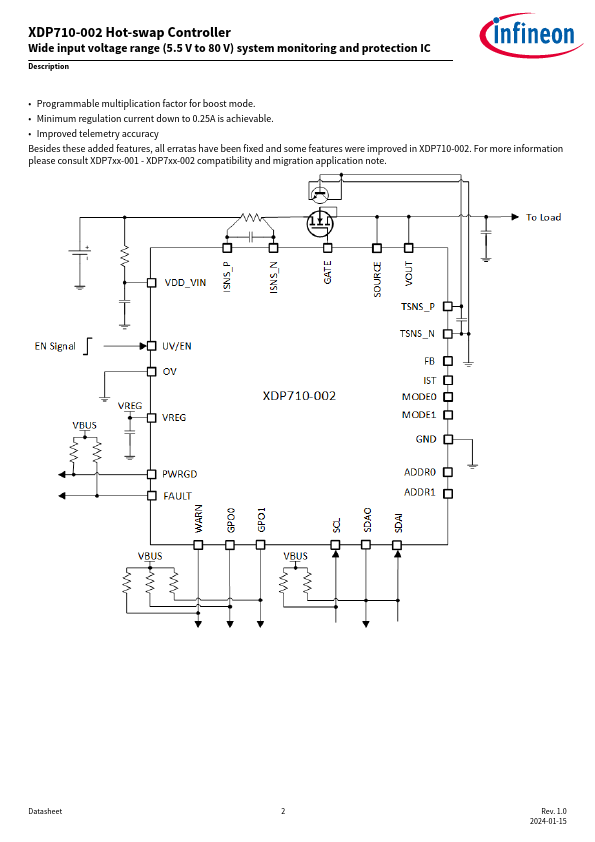

Additional preview pages of the XDP710-002 datasheet.

📁 Similar Datasheet

  • XDPAD5100 - Dual Pico Amp Diodes (Calogic LLC)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text
XDP710-002 Hot-swap Controller Wide input voltage range (5.5 V to 80 V) system monitoring and protection IC Features • XDP710-002 is an enhanced version of XDP710-001 with backwards compatibility • Compatible with Infineon’s OptiMOSTM • Compatible with Infineon’s Linear FET • Wide input voltage range: 5.5 V to 80 V • Transient withstand: up to 100 V for 500 ms • Dedicated current and voltage ADCs: 12-bit • Programmable and pre-set FET active SOA protection • Integrated gate driver and charge pump for external N-Channel MOSFET • Configurable fast FET's shut down: two step turn-off or 1.5 A pull-down current • PMBus interface: 1 MHz • Precision input and output voltage monitoring and reporting: ≤0.4% • Precision FET's current monitoring and reporting: ≤ 0.
