CSMT0702-S, CSMT0502 Datasheet - Canopus Electronics

CSMT0702-S SMD Magnetic Transducer

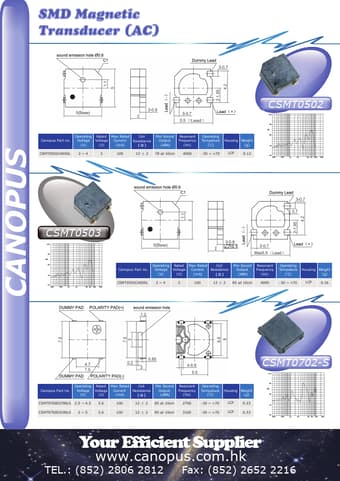

www.DataSheet.co.kr SMD Magnetic Transducer (AC) CSMT0502 Operating Voltage (V) 2~4 Rated Max Rated Voltage Current (V) (mA) 3 100 Coil Resistance 12 ± 2 Min Sound Output (dBA) 78 at 10cm Resonant Frequency (Hz) 4000 Operating Tempature o ( C) -30 ~ +70 Canopus Part no. Housing Weight (g) LCP 0.12 CANOPUS CSMT0502C4000L CSMT0503 Operating Voltage (V) 2~4 Rated Max Rated Voltage Current (V) (mA) 3 100 Coil Resistance Min Sound Output (dBA) 85 at 10cm Resonant Frequency (Hz) 4000 Operating .

CSMT0502_CanopusElectronics.pdf

This datasheet PDF includes multiple part numbers: CSMT0702-S, CSMT0502. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CSMT0702-S, CSMT0502

Manufacturer:

Canopus Electronics

File Size:

844.44 KB

Description:

Smd magnetic transducer.

Note:

This datasheet PDF includes multiple part numbers: CSMT0702-S, CSMT0502.
Please refer to the document for exact specifications by model.
