DMB01 Datasheet - Carlo Gavazzi

DMB01 - Timers Multifunction

Multi-voltage timer with 7 knob selectable functions and 7 knob selectable time ranges within 0.1s and 100h.

For mounting on DINrail (DMB01) or Plug-in (PMB01).

Ordering Key Housing Function Type Item number Output Power supply DMB 01 C M24 Type Selection Mounting DIN-rail Plug-in Output SPDT DPD

Timers Multifunction Types DMB01, PMB01 Time range 0.1 s to 100 h 7 knob selectable functions: Op delay on operate In interval Io interval on trigger open Id double interval Dr delay on release R symmetrical recycler ON first Rb symmetrical recycler OFF first Knob selection of time range Knob-adjustable time setting Automatic or manual start Repeatability: ≤ 0.2% Output: 8 A SPDT or 8 A DPDT relay For mounting on DIN

DMB01-CarloGavazzi.pdf

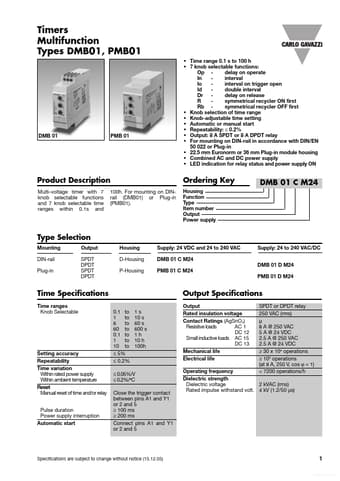

Preview of DMB01 PDF
DMB01 Datasheet Preview Page 2 DMB01 Datasheet Preview Page 3

Datasheet Details

Part number:

DMB01

Manufacturer:

Carlo Gavazzi

File Size:

146.60 KB

Description:

Timers multifunction.
