DMB01CM24 - Timers Multifunction

This page provides the datasheet information for the DMB01CM24, a member of the DMB01 Timers Multifunction family.

Description

Multi-voltage timer with 7 knob selectable functions and 7 knob selectable time ranges within 0.1s and 100h.

For mounting on DINrail (DMB01) or Plug-in (PMB01).

Carlo Gavazzi

📥 Download Datasheet

Datasheet Details

Part number	DMB01CM24
Manufacturer	Carlo Gavazzi
File Size	146.60 KB
Description	Timers Multifunction
Datasheet	DMB01CM24 Datasheet

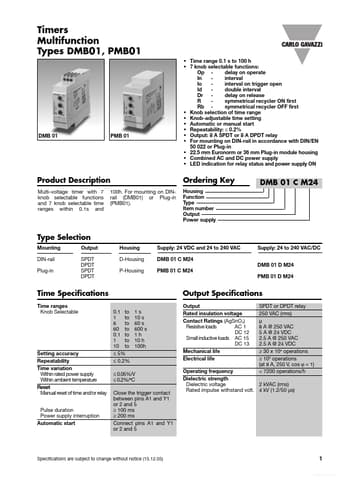

Additional preview pages of the DMB01CM24 datasheet.

📁 Similar Datasheet

DMB - ELECTRIC DOUBLE LAYER CAPACITORS (Rubycon)
DMB2227A - COMPLEMENTARY NPN / PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR (Diodes)
DMB53D0UDW - N-CHANNEL ENHANCEMENT MODE MOSFET PLUS NPN TRANSISTOR (Diodes)
DMB53D0UV - N-CHANNEL ENHANCEMENT MODE MOSFET PLUS NPN TRANSISTOR (Diodes)
DMB54D0UDW - N-Channel MOSFET (Diodes)
DMB54D0UV - N-Channel MOSFET (Diodes)
DMBT1015 - PNP Transistor (Dc Components)
DMBT1815 - PNP Transistor (Dc Components)
DMBT2222 - PNP Transistor (Dc Components)
DMBT2222A - PNP Transistor (Dc Components)

Other Datasheets by Carlo Gavazzi

DMB01 - Timers Multifunction
DMB51CM24 - (DMB51 Series) Timers Multifunction

Full PDF Text Transcription

Click to expand full text

Timers Multifunction Types DMB01, PMB01 • Time range 0.1 s to 100 h • 7 knob selectable functions: Op delay on operate In interval Io interval on trigger open Id double interval Dr delay on release R symmetrical recycler ON first Rb symmetrical recycler OFF first • Knob selection of time range • Knob-adjustable time setting • Automatic or manual start • Repeatability: ≤ 0.2% • Output: 8 A SPDT or 8 A DPDT relay • For mounting on DIN-rail in accordance with DIN/EN 50 022 or Plug-in • 22.5 mm Euronorm or 36 mm Plug-in module housing • Combined AC and DC power supply • LED indication for relay status and power supply ON DMB 01 PMB 01 Product Description Multi-voltage timer with 7 knob selectable functions and 7 knob selectable time ranges within 0.1s and 100h.
