PBA02 Datasheet - Carlo Gavazzi

PBA02 - Timers Delay on Release

Multi-voltage delay on release timer with 7 knob selectable time ranges within 0.1 s and 100 h.

For mounting on DIN-rail (DBA02) or Plug-in (PBA02).

Ordering Key Housing Function Type Item number Output Power supply DBA 02 C M24 Type Selection Mounting DIN-rail Plug-in Output SPDT SPDT Housing D-

www.DataSheet4U.com Timers Delay on Release Types DBA02, PBA02 Time range 0.1 s to 100 h Knob selection of time range Knob-adjustable time setting Repeatability: ≤ 0.2% Output: 8 A SPDT relay For mounting on DIN-rail in accordance with DIN/EN 50 022 or Plug-in 22.5 mm Euronorm or 36 mm Plug-in module housing Combined AC and DC power supply LED indication for relay status and power supply ON DBA02 PBA02

PBA02_CarloGavazzi.pdf

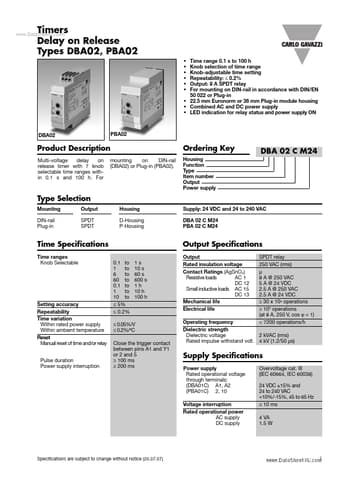

Preview of PBA02 PDF
PBA02 Datasheet Preview Page 2 PBA02 Datasheet Preview Page 3

Datasheet Details

Part number:

PBA02

Manufacturer:

Carlo Gavazzi

File Size:

119.85 KB

Description:

Timers delay on release.
