CAT4238 - High Efficiency 10 Led Boost Converter

CAT4238 Description

www.DataSheet4U.com CAT4238 High Efficiency 10 LED Boost Converter .
The CAT4238 is a DC/DC step-up converter that delivers an accurate constant current ideal for driving LEDs.

CAT4238 Features

* Drives High Voltage LED strings (38V) Up to 87% Efficiency Low Quiescent Ground Current 0.6mA Adjustable Output Current 1MHz Fixed Frequency Low noise Operation Soft start “in-rush” current

CAT4238 Applications

* The CAT4238 high-voltage output stage is perfect for driving mid-size and large panel displays containing up to ten white LEDs in series. LED dimming can be done by using a DC voltage, a logic signal, or a pulse width modulation (PWM) signal. The shutdown input pin allows the device to be placed in

📥 Download Datasheet

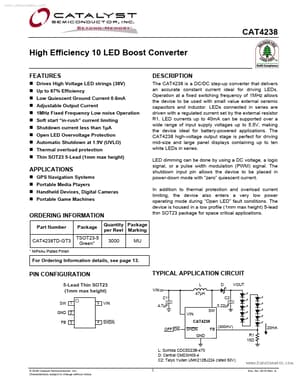

Preview of CAT4238 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CAT4238
Manufacturer
Catalyst Semiconductor
File Size
318.22 KB
Datasheet
CAT4238_CatalystSemiconductor.pdf
Description
High Efficiency 10 Led Boost Converter
