CAT4004B

Constant Current Programmable LED Driver

CAT4004B Features

* 3, 4 LED Current Sinks with Tight Matching

* 32 D

CAT4004B General Description

The CAT4003B and CAT4004B provide respectively three and four matched low dropout current sources to drive LEDs. The CAT400XB requires no external RSET resistor. The LED current is internally set to 25 mA when the device is first enabled. Each LED channel includes an individual control loop allowing.

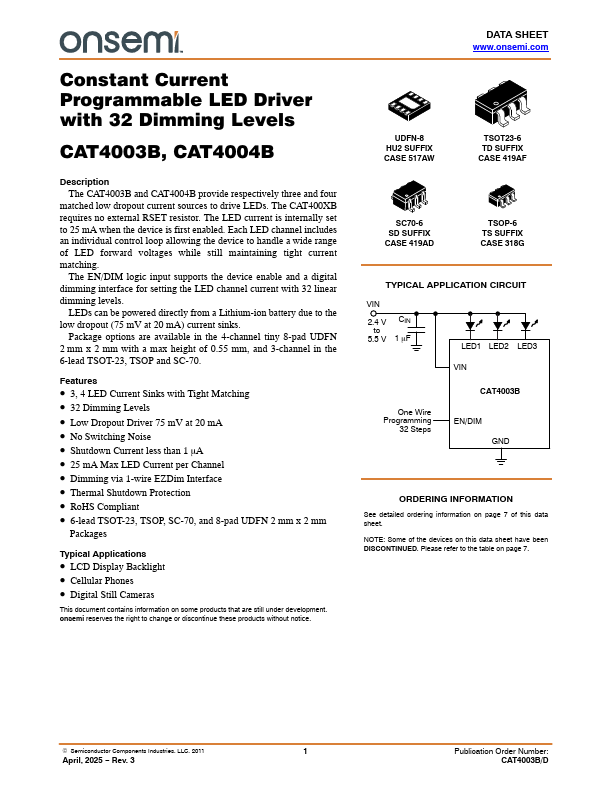

CAT4004B Datasheet (179.49 KB)

Preview of CAT4004B PDF

Datasheet Details

Part number:

CAT4004B

Manufacturer:

ON Semiconductor ↗

File Size:

179.49 KB

Description:

Constant current programmable led driver.

📁 Related Datasheet

CAT4004 - 4-Channel Constant Current LED Driver (Catalyst Semiconductor)
CAT4004 4-Channel Constant Current LED Driver with EZDim™ FEATURES „ „ „ „ „ „ „ „ „ Four LED current sinks with tight matching Low Dropout Driver 130.

CAT4004A - Constant Current LED Driver (ON Semiconductor)
Constant Current LED Driver with 32 Dimming Levels and Rset CAT4002A, CAT4004A Description The CAT4002A and CAT4004A provide respectively two and fou.

CAT4002A - Constant Current LED Driver (ON Semiconductor)
Constant Current LED Driver with 32 Dimming Levels and Rset CAT4002A, CAT4004A Description The CAT4002A and CAT4004A provide respectively two and fou.

CAT4002B - Constant Current Programmable LED Driver (ON Semiconductor)
.

CAT4003B - Constant Current Programmable LED Driver (ON Semiconductor)
CAT4003B, CAT4004B Constant Current Programmable LED Driver with 32 Dimming Levels Description The CAT4003B and CAT4004B provide respectively three a.

CAT4008 - 8-Channel Constant Current LED Driver (Catalyst Semiconductor)
CAT4008 8-Channel Constant Current LED Driver FEATURES „ 8 Constant current-sink channels „ Serial interface up to 25MHz clock frequency „ 3V to 5.5V.

CAT4008 - 8-Channel Constant Current LED Driver (ON Semiconductor)
CAT4008 8-Channel Constant Current LED Driver Description The CAT4008 is an 8 channel constant current driver for LED billboard and other general dis.

CAT4016 - 16-Channel Constant Current LED Driver (ON Semiconductor)
16-Channel Constant Current LED Driver CAT4016, CAV4016 Description The CAT4016 is a 16 channel constant current driver for LED billboard and other ge.

TAGS

CAT4004B Constant Current Programmable LED Driver ON Semiconductor

Image Gallery

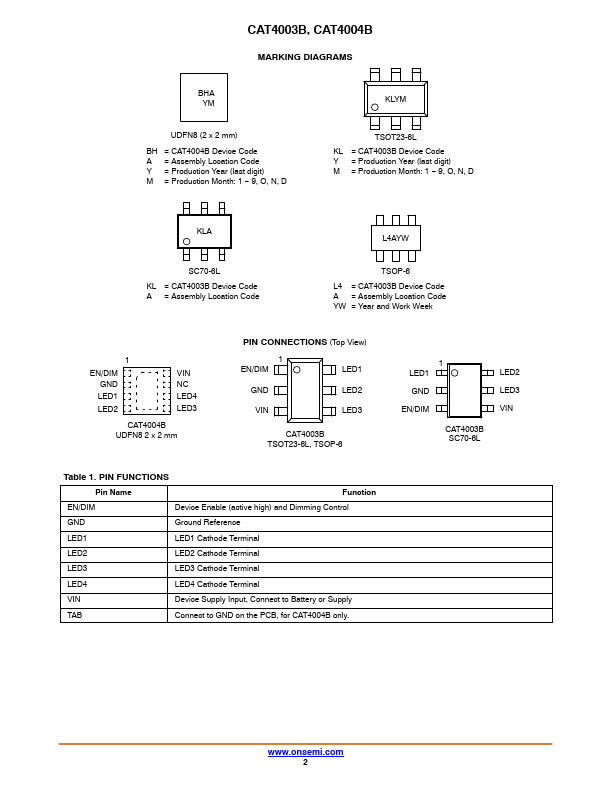

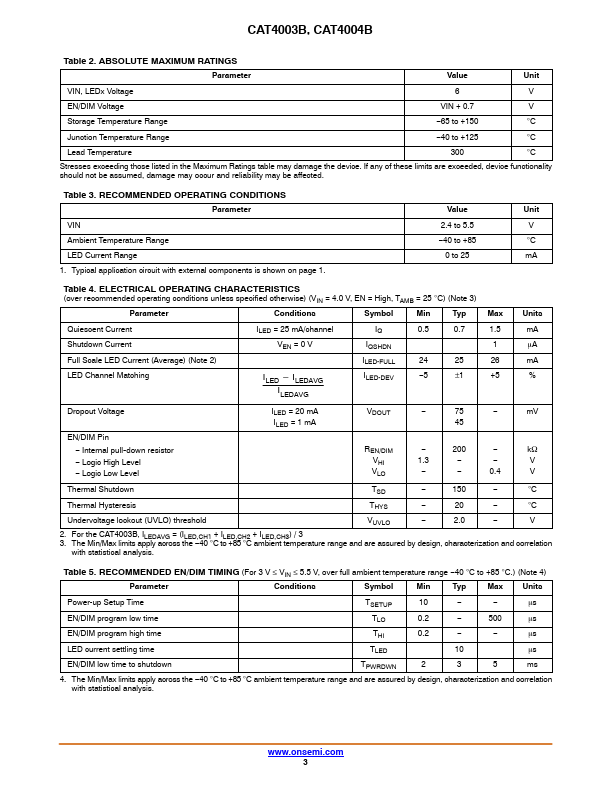

CAT4004B Datasheet Preview Page 2 CAT4004B Datasheet Preview Page 3
