CAT504 Datasheet, Dacpot, Catalyst Semiconductor

CAT504 Features

  • Dacpot s Output settings retained without power s Output range includes both supply rails s 4 independently addressable outputs s 1 LSB Accuracy s Serial µP interface s Single supply operation

PDF File Details

Part number:

CAT504

Manufacturer:

Catalyst Semiconductor

File Size:

141.53kb

Download:

📄 Datasheet

Description:

8-bit quad dacpot. The CAT504 is a quad 8-Bit Memory DAC designed as an electronic replacement for mechanical potentiometers and trim pots. Intended for

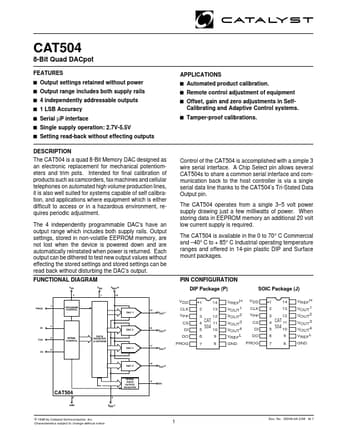

Datasheet Preview: CAT504 📥 Download PDF (141.53kb)
Page 2 of CAT504 Page 3 of CAT504

CAT504 Application

  • Applications s Automated product calibration. s Remote control adjustment of equipment s Offset, gain and zero adjustments in Self- Calibrating and
