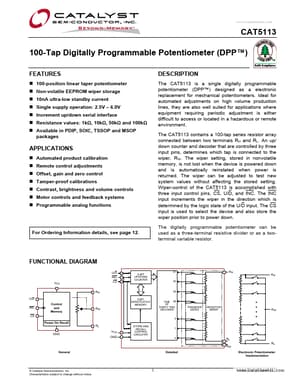

datasheet Preview Page 1 from Datasheet4u.com

CAT5113 100-Tap Digitally Programmable Potentiometer

www.DataSheet4U.com CAT5113 100-Tap Digitally Programmable Potentiometer (DPP™) .
The CAT5113 is a single digitally programmable potentiometer (DPP™) designed as a electronic replacement for mechanical potentiometers.

CAT5113_CatalystSemiconductor.pdf

Preview of CAT5113 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

CAT5113

Manufacturer:

Catalyst Semiconductor

File Size:

303.27 KB

Description:

100-Tap Digitally Programmable Potentiometer

Features

* 100-position linear taper potentiometer
* Non-volatile EEPROM wiper storage
* 10nA ultra-low standby current
* Single supply operation: 2.5V
* 6.0V
* Increment up/down serial interface
* Resistance values: 1kΩ, 10kΩ, 50kΩ and 100kΩ

Applications

* where equipment requiring periodic adjustment is either difficult to access or located in a hazardous or remote environment. The CAT5113 contains a 100-tap series resistor array connected between two terminals RH and RL. An up/ down counter and decoder that are controlled by three input pins, determ
