CAT5114 - 32-Tap Digitally Programmable Potentiometer (DPP)

Catalyst Semiconductor

📥 Download Datasheet

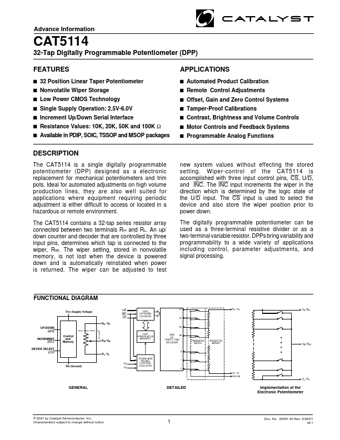

CAT5114 Datasheet Preview — Preview of CAT5114 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CAT5114
Manufacturer	Catalyst Semiconductor
File Size	41.75 KB
Description	32-Tap Digitally Programmable Potentiometer (DPP)
Datasheet	CAT5114_CatalystSemiconductor.pdf

CAT5114 Product details

Description

The CAT5114 is a single digitally programmable potentiometer (DPP) designed as a electronic replacement for mechanical potentiometers and trim pots.

Features

s 32 Position Linear Taper Potentiometer s Nonvolatile Wiper Storage s Low Power CMOS Technology s Single Supply Operation: 2.5V-6.0V s Increment Up/Down Serial Interface s Resistance Values: 10K, 20K, 50K and 100K Ω s Available in PDIP, SOIC, TSSOP and MSOP packages.
