CAT93C86 - 1K/2K/2K/4K/16K-Bit Microwire Serial E2PROM

Name: CAT93C86
SKU: CAT93C86-111167

Catalyst Semiconductor

📥 Download Datasheet

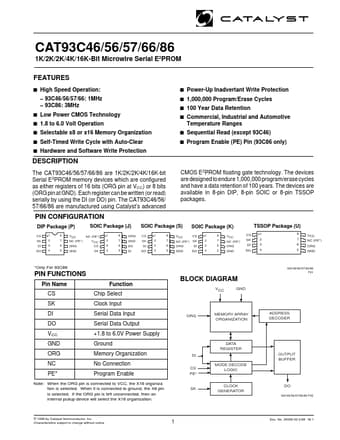

CAT93C86 Datasheet Preview — Preview of CAT93C86 PDF

Datasheet Details

Part number	CAT93C86
Manufacturer	Catalyst Semiconductor
File Size	61.50 KB
Description	1K/2K/2K/4K/16K-Bit Microwire Serial E2PROM
Datasheet	CAT93C86_CatalystSemiconductor.pdf

CAT93C86 Product details

Description

The CAT93C46/56/57/66/86 are 1K/2K/2K/4K/16K-bit Serial E2PROM memory devices which are configured as either registers of 16 bits (ORG pin at VCC) or 8 bits (ORG pin at GND).

Features

s High Speed Operation: s Power-Up Inadvertant Write Protection s 1,000,000 Program/Erase Cycles s 100 Year Data Retention s Commercial, Industrial and Automotive.
93C46/56/57/66: 1MHz.
93C86: 3MHz s Low Power CMOS Technology s 1.8 to 6.0 Volt Operation s Selectable x8 or x16 Memory Organization s Self-Timed Write Cycle with Auto-Clear s Hardware and Software Write Protection Temperature Ranges s Sequential Read (except 93C46) s Program Enable (PE) Pin (93C86 only).
