22C10 Datasheet - CatalystSemiconductor

256-BitNonvolatileCMOSStaticRAM

22C10 Features

* s Single 5V Supply s Fast RAM Access Times: s Low CMOS Power Consumption:

* 200ns

* 300ns s Infinite E PROM to RAM Recall s CMOS and TTL Compatible I/O s Power Up/Down Protection s 100,000 Program/Erase Cycles (E2PROM) 2

* Active: 40mA Max.

* Standby: 30 µA Max. s JEDEC

22C10 General Description

The CAT22C10 NVRAM is a 256-bit nonvolatile memory organized as 64 words x 4 bits. The high speed Static RAM array is bit for bit backed up by a nonvolatile E2PROM array which allows for easy transfer of data from RAM array to E2PROM (STORE) and from E2PROM to RAM (RECALL). STORE operations are comp.

22C10 Datasheet (70.54 KB)

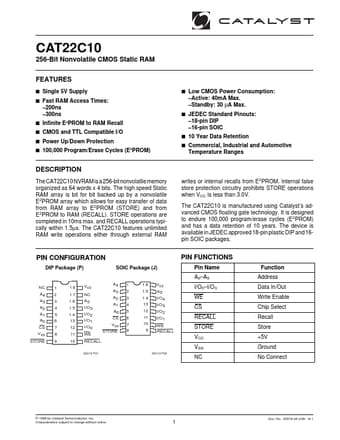

22C10 Datasheet Preview — Preview of 22C10 PDF

Datasheet Details

Part number:

22C10

Manufacturer:

CatalystSemiconductor

File Size:

70.54 KB

Description:

256-bitnonvolatilecmosstaticram.
