22CGQ045 Datasheet - International Rectifier

SCHOTTKY RECTIFIER

22CGQ045 Features

* The 22CGQ045 center tap Schottky rectifier has been expressly designed to meet the rigorous requirements of hi-rel environments. It is packaged in the hermetic, isolated, TO-254AA package and has extremely low reverse leakage at high temperature. Full MIL-PRF-19500 quality conformance testing is ava

22CGQ045 General Description

(Square) Case Style Pulse Width < 300µs, Duty Cycle < 2% 9.3 0.150 TO-254AA g inches JEDEC 0.21 °C/W Mounting surface, smooth and greased 0.625 °C/W DC operation 22CGQ045 -55 to 150 -55 to 150 1.25 Units °C °C °C/W Conditions RthJC Max. Thermal Resistance, Junction DC operation *See Fig. .

22CGQ045 Datasheet (107.49 KB)

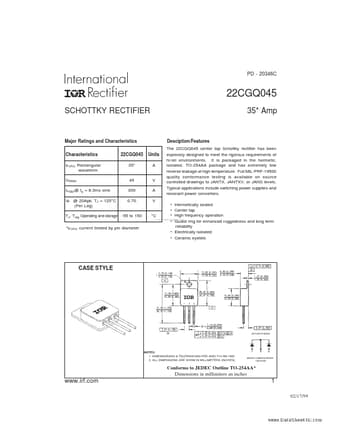

22CGQ045 Datasheet Preview — Preview of 22CGQ045 PDF

Datasheet Details

Part number:

22CGQ045

Manufacturer:

International Rectifier

File Size:

107.49 KB

Description:

Schottky rectifier.
PD - 20346C 22CGQ045 SCHOTTKY RECTIFIER 35 Amp Major Ratings and Characteristics Characteristics IF(AV) Rectangular waveform VRRM IFSM @ tp = 8.
