2N5059 - NPN SILICON TRANSISTOR

Datasheet Summary

Description

The CENTRAL SEMICONDUCTOR 2N5058 and 2N5059 are silicon NPN epitaxial planar transistors designed for high voltage general purpose amplifier applications.

📥 Download Datasheet

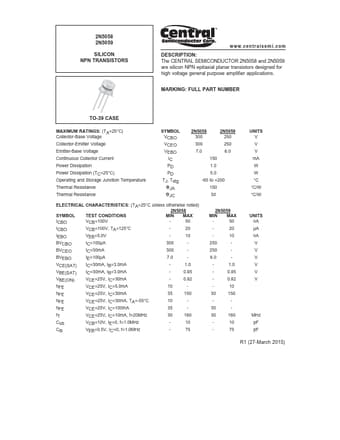

Datasheet preview – 2N5059

Datasheet Details

Part number 2N5059
Manufacturer Central Semiconductor Corp
File Size 162.17 KB
Description NPN SILICON TRANSISTOR
Datasheet download datasheet 2N5059 Datasheet
