CMOD6263 Datasheet - Central Semiconductor Corp

CMOD6263, ULTRAmini. HIGH VOLTAGE SCHOTTKY DIODE

CMOD6263 ULTRAmini™ HIGH VOLTAGE SCHOTTKY DIODE Central .
The CENTRAL SEMICONDUCTOR CMOD6263 is a High Voltage Silicon Schottky diode in an epoxymolded ULTRAmini™ package, designed for surface mount fast swi.

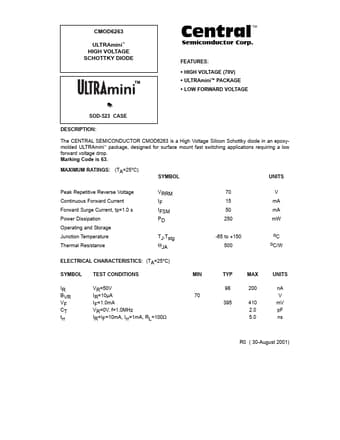

datasheet Preview Page 1 from Datasheet4u.com

CMOD6263_CentralSemiconductorCorp.pdf

CMOD6263 Datasheet Preview — Preview of CMOD6263 PDF

Datasheet Details

Part number:

CMOD6263

Manufacturer:

Central Semiconductor ↗ Corp

File Size:

95.55 KB

Description:

ULTRAmini. HIGH VOLTAGE SCHOTTKY DIODE

Features

* TM Semiconductor Corp.
* HIGH VOLTAGE (70V)
* ULTRAmini™ PACKAGE

Applications

* requiring a low forward voltage drop. Marking Code is 63. MAXIMUM RATINGS: (TA=25°C) SYMBOL VRRM IF IFSM PD TJ,Tstg ΘJA 70 15 50 250 -65 to +150 500 UNITS V mA mA mW oC oC/W Peak Repetitive Reverse Voltage Continuous Forward Current Forward Surge Current, tp=1.0 s Power Dissipation Operating and St
