CMOD2005, SURFACE MOUNT HIGH VOLTAGE SILICON SWITCHING DIODE

CMOD2005 SURFACE MOUNT HIGH VOLTAGE SILICON SWITCHING DIODE w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR CMOD2005 is a Silicon Switching Diode, manufactured by the epitaxial planar process, epoxy molded in a SOD-523 surface moun.

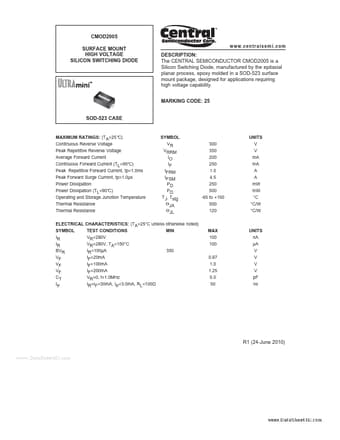

datasheet Preview Page 1 from Datasheet4u.com

CMOD2005_CentralSemiconductor.pdf

CMOD2005 Datasheet Preview — Preview of CMOD2005 PDF

Datasheet Details

Part number:

CMOD2005

Manufacturer:

Central Semiconductor ↗

File Size:

361.79 KB

Description:

SURFACE MOUNT HIGH VOLTAGE SILICON SWITCHING DIODE

Applications

* requiring high voltage capability. MARKING CODE: 25 SOD-523 CASE MAXIMUM RATINGS: (TA=25 °C) Continuous Reverse Voltage Peak Repetitive Reverse Voltage Average Forward Current Continuous Forward Current (TL=90°C) Peak Repetitive Forward Current, tp=1.0ms Peak Forward Surge Current, tp=1.0μs Power
