CXTA42 - SURFACE MOUNT SILICON HIGH VOLTAGE TRANSISTOR

CXTA42 Description

CXTA42 NPN CXTA92 PNP SURFACE MOUNT SILICON HIGH VOLTAGE TRANSISTOR Central TM Semiconductor Corp..
The CENTRAL SEMICONDUCTOR CXTA42, CXTA92 types are complementary surface mount epoxy molded silicon planar epitaxial transistors designed for high vo.

CXTA42 Applications

* SOT-89 CASE MAXIMUM RATINGS (TA=25oC) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VCBO VCEO VEBO IC PD TJ,Tstg ΘJA CXTA42 300 300 6.0 500 1.2 -65 to +150 104 CXTA92 30

📥 Download Datasheet

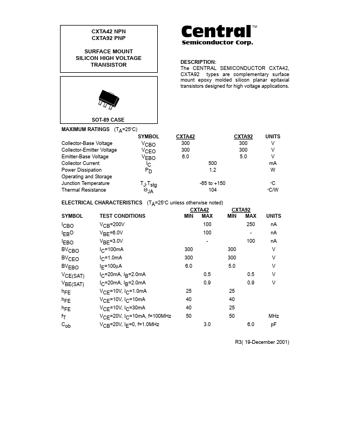

Preview of CXTA42 PDF
datasheet Preview Page 2
