1N4943 - FAST RECOVERY GLASS PASSIVATED SILICON RECTIFIERS

This page provides the datasheet information for the 1N4943, a member of the 1N4942 FAST RECOVERY GLASS PASSIVATED SILICON RECTIFIERS family.

Datasheet Summary

Description

The CENTRAL SEMICONDUCTOR 1N4942 series types are silicon rectifiers mounted in a hermetically sealed, glass passivated package, designed for general purpose applications where fast reverse recovery times and high reliability is desired.

📥 Download Datasheet

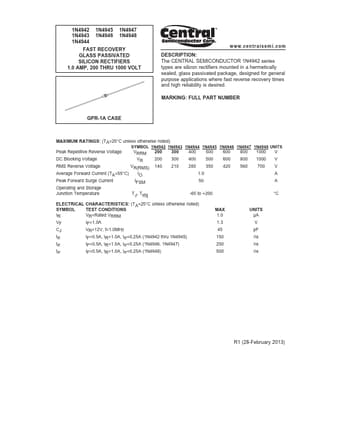

Datasheet preview – 1N4943

Datasheet Details

Part number 1N4943
Manufacturer Central Semiconductor
File Size 658.71 KB
Description FAST RECOVERY GLASS PASSIVATED SILICON RECTIFIERS
Datasheet download datasheet 1N4943 Datasheet
Additional preview pages of the 1N4943 datasheet.

📁 Similar Datasheet

  • 1N4942 - 1A Fast Recovery Rectifiers (SENSITRON SEMICONDUCTOR)
  • 1N4942 - 1.0Amp Fast Recovery Rectifiers (UUX)
  • 1N4942 - 1.0 Amp Fast Recovery Rectifiers (GOOD-ARK)
  • 1N4942 - Fast Recovery Rectifier Diodes (Micross)
  • 1N4942 - FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • 1N4942 - FAST RECOVERY RECTIFIER (Rectron)
  • 1N4942 - FAST RECOVERY RECTIFIERS DIODES (Digitron Semiconductors)
  • 1N4942 - FAST RECOVER RECTIFIER (MIC)
  • 1N4942 - FAST RECOVERY RECIFIER (MEI SEMI)
  • 1N4942 - 1.0 Amp. Fast Recovery Rectifiers (JGD)
Other Datasheets by Central Semiconductor
  • 1N4942 - FAST RECOVERY GLASS PASSIVATED SILICON RECTIFIERS
  • 1N4944 - FAST RECOVERY GLASS PASSIVATED SILICON RECTIFIERS
  • 1N4945 - FAST RECOVERY GLASS PASSIVATED SILICON RECTIFIERS
  • 1N4946 - FAST RECOVERY GLASS PASSIVATED SILICON RECTIFIERS
  • 1N4947 - FAST RECOVERY GLASS PASSIVATED SILICON RECTIFIERS
  • 1N4948 - FAST RECOVERY GLASS PASSIVATED SILICON RECTIFIERS
  • 1N4099 - SILICON ZENER DIODE
  • 1N4100 - SILICON ZENER DIODE

Full PDF Text Transcription

Click to expand full text
1N4942 1N4945 1N4947 1N4943 1N4946 1N4948 1N4944 FAST RECOVERY GLASS PASSIVATED SILICON RECTIFIERS 1.0 AMP, 200 THRU 1000 VOLT GPR-1A CASE w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR 1N4942 series types are silicon rectifiers mounted in a hermetically sealed, glass passivated package, designed for general purpose applications where fast reverse recovery times and high reliability is desired. MARKING: FULL PART NUMBER MAXIMUM RATINGS: (TA=25°C unless otherwise noted) SYMBOL 1N4942 1N4943 1N4944 1N4945 1N4946 1N4947 1N4948 UNITS Peak Repetitive Reverse Voltage VRRM 200 300 400 500 600 800 1000 V DC Blocking Voltage VR 200 300 400 500 600 800 1000 V RMS Reverse Voltage VR(RMS) 140 210 280 350 420 560 700 V Average Forward Current (TA=55°C) IO 1.
