1N4942C - Fast Switching Plastic Rectifier

Datasheet Summary

Features

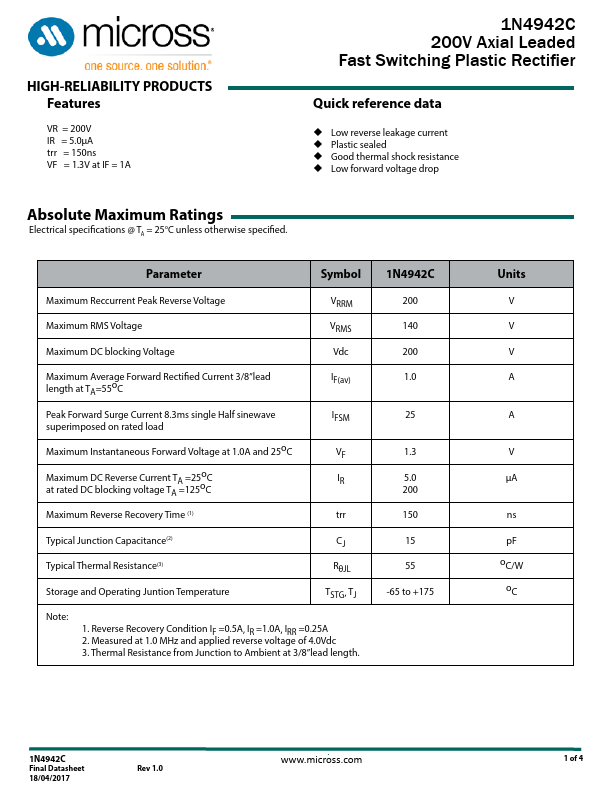

  • VR = 200V IR = 5.0µA trr = 150ns VF = 1.3V at IF = 1A 1N4942C 200V Axial Leaded Fast Switching Plastic Rectifier Quick reference data ‹ Low reverse leakage current ‹ Plastic sealed ‹ Good thermal shock resistance ‹ Low forward voltage drop Absolute Maximum Ratings Electrical specifications @ TA = 25oC unless otherwise specified. Parameter Symbol Maximum Reccurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC blocking Voltage VRRM VRMS Vdc Maximum Average Forward Rectified Current 3.
