1N5554, 1N5550, GLASS PASSIVATED SILICON RECTIFIERS

1N5550 1N5553 1N5551 1N5554 1N5552 GLASS PASSIVATED SILICON RECTIFIERS 3.0 AMP, 200 THRU 1000 VOLT w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR 1N5550 series types are silicon rectifiers mounted in a hermetically sealed, glass passivated package designed for general.

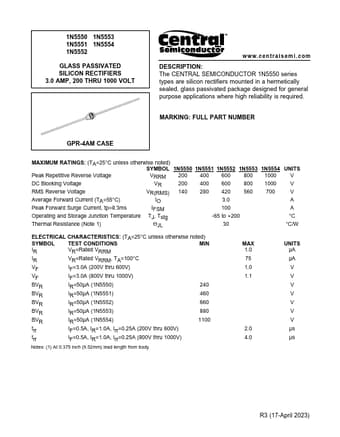

datasheet Preview Page 1 from Datasheet4u.com

1N5550-CentralSemiconductor.pdf

1N5554 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N5554, 1N5550. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1N5554, 1N5550

Manufacturer:

Central Semiconductor ↗

File Size:

426.21 KB

Description:

GLASS PASSIVATED SILICON RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: 1N5554, 1N5550.
Please refer to the document for exact specifications by model.

Applications

* where high reliability is required. MARKING: FULL PART NUMBER GPR-4AM CASE MAXIMUM RATINGS: (TA=25°C unless otherwise noted) SYMBOL 1N5550 1N5551 1N5552 1N5553 1N5554 UNITS Peak Repetitive Reverse Voltage VRRM 200 400 600 800 1000 V DC Blocking Voltage VR 200 400 600 800 1000 V RMS Rever
