CDCLD080

SURFACE MOUNT SILICON CURRENT LIMITING DIODES

CDCLD080 Features

* Zero temperature coefficient

* High regulator currents available

* Industry standard thermally efficient DPAK MAXIMUM RATINGS: (TA=25°C unless otherwise noted) SYMBOL Peak Operating Voltage Peak Operating Voltage (TC=122°C) Power Dissipation (Note 1) Power Dissipatio

CDCLD080 General Description

The CENTRAL SEMICONDUCTOR CDCLD080 series devices are Current Limiting Diodes (CLDs) specifically designed for applications requiring a constant current over a wide voltage range. The series is designed with a unique process that holds regulator current constant over temperature excursions (zero te.

CDCLD080 Datasheet (596.65 KB)

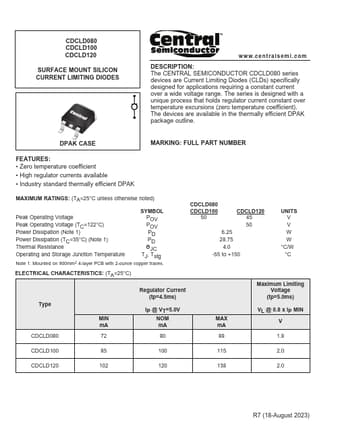

Preview of CDCLD080 PDF

Datasheet Details

Part number:

CDCLD080

Manufacturer:

Central Semiconductor ↗

File Size:

596.65 KB

Description:

Surface mount silicon current limiting diodes.
