CTLDM8120-M832D Datasheet, Mosfet, Central Semiconductor

CTLDM8120-M832D Features

  • Mosfet
  • ESD protection up to 2kV
  • Low rDS(ON) (0.24Ω MAX @ VGS=1.8V)
  • High current (ID=0.95A)
  • Logic level compatibility MAXIMUM RATINGS: (TA=25°C) Drain-

PDF File Details

Part number:

CTLDM8120-M832D

Manufacturer:

Central Semiconductor ↗

File Size:

764.41kb

Download:

📄 Datasheet

Description:

Surface mount dual p-channel enhancement-mode silicon mosfet. The CENTRAL SEMICONDUCTOR CTLDM8120-M832DS is an Enhancement-mode Dual P-Channel MOSFET, manufactured by the P-Channel DMOS Process,

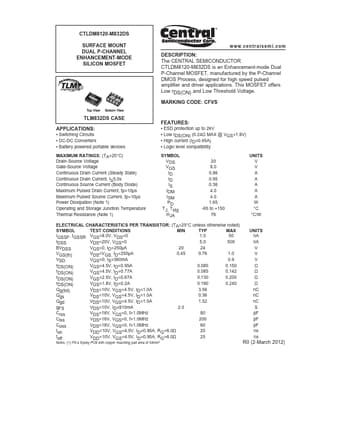

Datasheet Preview: CTLDM8120-M832D 📥 Download PDF (764.41kb)
Page 2 of CTLDM8120-M832D Page 3 of CTLDM8120-M832D

CTLDM8120-M832D Application

  • Applications This MOSFET offers Low rDS(ON) and Low Threshold Voltage. MARKING CODE: CFVS TLM832DS CASE APPLICATIONS:
  • Switching Circuits

TAGS

CTLDM8120-M832D
SURFACE
MOUNT
DUAL
P-CHANNEL
ENHANCEMENT-MODE
SILICON
MOSFET
Central Semiconductor
