CZT651 - SURFACE MOUNT NPN SILICON TRANSISTOR

The CZT651 by Central Semiconductor is a SURFACE MOUNT NPN SILICON TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

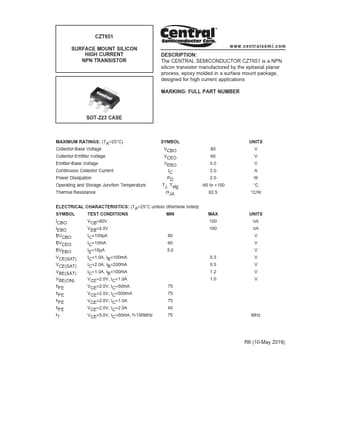

Official preview page of the CZT651 SURFACE MOUNT NPN SILICON TRANSISTOR datasheet (Central Semiconductor).

CZT651 Product details

Description

The CENTRAL SEMICONDUCTOR CZT651 is a NPN silicon transistor manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for high current applications MARKING: FULL PART NUMBER SOT-223 CASE MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VCBO VCEO VEBO IC PD TJ, Tstg ΘJA 80 60 5.0 2.0 2.0 -65
