CZT2000 Datasheet - Central Semiconductor Corp

CZT2000 NPN SILICON EXTREMELY HIGH VOLTAGE DARLINGTON TRANSISTOR

TM Semiconductor Corp. The CENTRAL SEMICONDUCTOR CZT2000 type is an NPN Epitaxial Planar Silicon Darlington Transistor manufactured in an epoxy molded surface mount package, designed for applications requiring extremely high voltages and high gain capability. SOT-223 CASE MAXIMUM RATINGS (TA=25o.

CZT2000 Datasheet (92.56 KB)

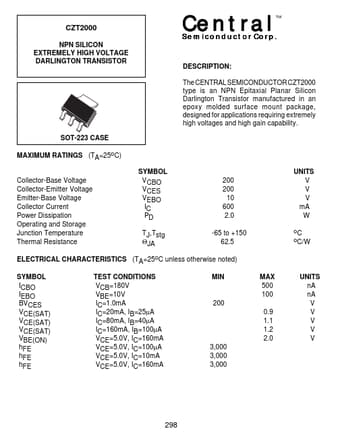

Preview of CZT2000 PDF
CZT2000 Datasheet Preview Page 2

Datasheet Details

Part number:

CZT2000

Manufacturer:

Central Semiconductor ↗ Corp

File Size:

92.56 KB

Description:

Npn silicon extremely high voltage darlington transistor.
