D44C1 - SILICON NPN POWER TRANSISTORS

Description

The CENTRAL SEMICONDUCTOR D44C series devices are silicon NPN power transistors designed for general purpose amplifier and switching applications.

📥 Download Datasheet

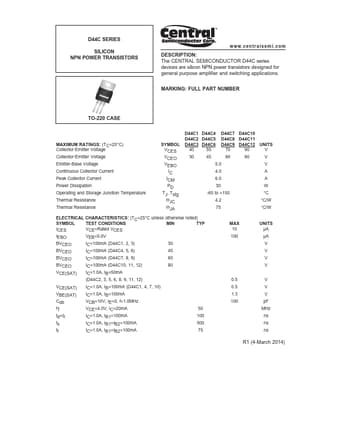

Datasheet preview – D44C1

Datasheet Details

Part number D44C1
Manufacturer Central Semiconductor
File Size 154.89 KB
Description SILICON NPN POWER TRANSISTORS
Datasheet download datasheet D44C1 Datasheet
Additional preview pages of the D44C1 datasheet.

📁 Similar Datasheet

  • D44C1 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • D44C1 - Silicon NPN Power Transistors (Savantic)
  • D44C10 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • D44C10 - Silicon NPN Power Transistors (Savantic)
  • D44C11 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • D44C11 - Silicon NPN Transistor (NTE)
  • D44C11 - Silicon NPN Power Transistors (Savantic)
  • D44C12 - Complementary Silicon Power Transistor (ON Semiconductor)
  • D44C12 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • D44C12 - Silicon NPN Power Transistors (Savantic)
Other Datasheets by Central Semiconductor
  • D44C10 - SILICON NPN POWER TRANSISTORS
  • D44C11 - SILICON NPN POWER TRANSISTORS
  • D44C12 - SILICON NPN POWER TRANSISTORS
  • D44C2 - SILICON NPN POWER TRANSISTORS
  • D44C3 - SILICON NPN POWER TRANSISTORS
  • D44C4 - SILICON NPN POWER TRANSISTORS
  • D44C5 - SILICON NPN POWER TRANSISTORS
  • D44C6 - SILICON NPN POWER TRANSISTORS

Full PDF Text Transcription

Click to expand full text
D44C SERIES SILICON NPN POWER TRANSISTORS w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR D44C series devices are silicon NPN power transistors designed for general purpose amplifier and switching applications. MARKING: FULL PART NUMBER TO-220 CASE MAXIMUM RATINGS: (TC=25°C) Collector-Emitter Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Peak Collector Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance Thermal Resistance SYMBOL VCES VCEO VEBO IC ICM PD TJ, Tstg ΘJC ΘJA D44C1 D44C4 D44C2 D44C5 D44C3 D44C6 40 55 D44C7 D44C8 D44C9 70 30 45 60 5.0 4.0 6.0 30 -65 to +150 4.
