D44C4 - Silicon NPN Transistor

Product Overview

📥 Download Datasheet

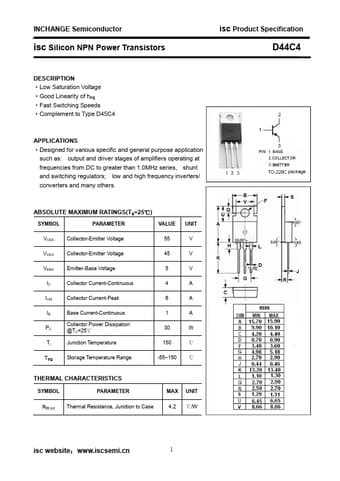

Datasheet preview – D44C4

Datasheet Details

Part number D44C4
Manufacturer Inchange Semiconductor
File Size 185.24 KB
Description Silicon NPN Transistor
Datasheet download datasheet D44C4 Datasheet
Additional preview pages of the D44C4 datasheet.

Product details

Description

Low Saturation Voltage Good Linearity of hFE Fast Switching Speeds Complement to Type D45C4 APPLICATIONS Designed for various specific and general purpose application such as: output and driver stages of amplifiers operating at frequencies from DC to greater than 1.0MHz series, shunt and switching regulators; low and high frequency inverters/ converters and many others.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCES Collector-Emitter Voltage 5
