CM6502S - EPA/90+ ZVS-Like PFC CONTROLLER

CM6502S Description

CM6502S (Dynamic Soft PFC) http://www.championmicro.com.tw EPA/90+ ZVS-Like PFC CONTROLLER Design for High Efficient Power Supply at both Full Load.
CM6802S is a ZVS-Like Single PFC and it is designed to meet 90+ spec.

CM6502S Features

* 1.) Around 2% efficiency gain when the output load is below 40% of the full load. 2.) Hold Up time can be increased ~ 30% from the existing 6800 power supply. 3.) 420V bulk capacitor value can be reduced, and also PFC boost ripple current can be reduced; therefore, the boost inductor core size may

CM6502S Applications

* ‹ EPA/90+ related Power Supply ‹ Desktop PC Power Supply ‹ Internet Server Power Supply ‹ LCD Power Supply ‹ PDP Power Supply ‹ IPC Power Supply ‹ UPS ‹ Battery Charger ‹ DC Motor Power Supply ‹ Monitor Power Supply ‹ Telecom System Power Supply ‹ Distributed Power PIN CONFIGURATION SOP-14 (S14) 1

📥 Download Datasheet

Preview of CM6502S PDF

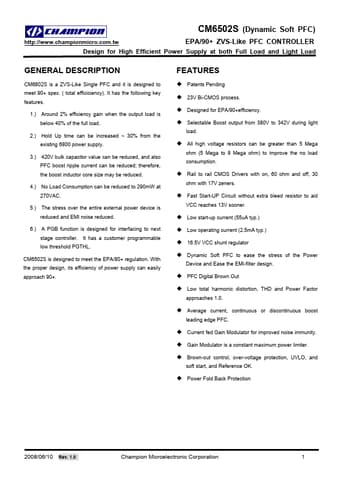

datasheet Preview Page 2 datasheet Preview Page 3
