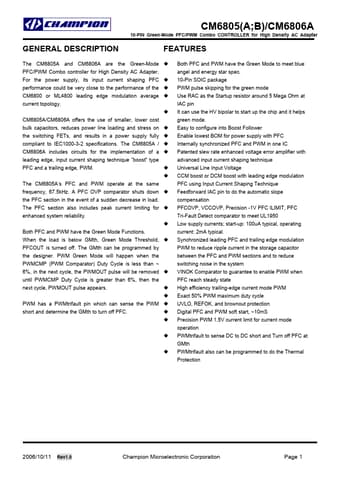

CM6805(A;B)/CM6806A
10-PIN Green-Mode PFC/PWM Combo CONTROLLER for High Density AC Adapter
GENERAL DESCRIPTION
FEATURES
The CM6805A and CM6806A are the Green-Mode
PFC/PWM Combo controller for High Density AC Adapter. For the power supply, its input current shaping PFC performance could be very close to the performance of the CM6800 or ML4800 leading edge modulation average
current topology.
CM6805A/CM6806A offers the use of smaller, lower cost bulk capacitors, reduces power line loading and stress on the switching FETs, and results in a power supply fully compliant to IEC1000-3-2 specifications. The CM6805A / CM6806A includes circuits for the implementation of a
leading edge, input current shaping technique “boost” type
PFC and a trailing edge, PWM.
