CMD02

Magic Switch

CMD02 Features

* ‹ Remove Phantom Power consumption ‹ 4 terminal with > 5 mm space on package and PCB ‹ 2 terminal with >3 mm space on package and PCB ‹ Meet safety ICE 60065/60950 ‹ Break down voltage ~1KV ‹ Design for lightning surge sensitive environment ‹ One product works with any EMI’s capacitor filter design

CMD02 General Description

This data sheet will show how to remove Phantom Power consumption. It may not be necessary to use Magic Switch (Fig1) and an equivalent circuit (Fig2) has been provided in the data sheet. The Phantom Power consumption due to EMI Cap.’s discharge resistor can be removed by a pretty simple circuit as .

CMD02 Datasheet (180.66 KB)

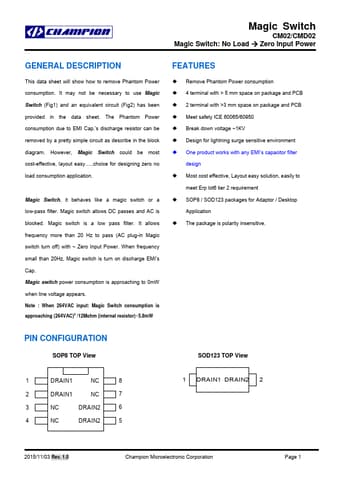

Preview of CMD02 PDF

Datasheet Details

Part number:

CMD02

Manufacturer:

Champion

File Size:

180.66 KB

Description:

Magic switch.
