CMD132P3

5-11 GHz Low Noise Amplifier

CMD132P3 Features

* Ultra low noise figure

* Low current consumption

* High gain broadband performance

* Single supply voltage: +3.6 V @ 30 mA

* Pb-free RoHs compliant 3x3 QFN package Description The CMD132P3 is a broadband MMIC low noise amplifier housed in a leadless 3x3 mm plastic surface mount

CMD132P3 General Description

The CMD132P3 is a broadband MMIC low noise amplifier housed in a leadless 3x3 mm plastic surface mount package. The CMD132P3 is ideally suited for microwave radios and C and X-band applications where small size and low power consumption are needed. The broadband device delivers greater than 20 dB of.

CMD132P3 Datasheet (256.05 KB)

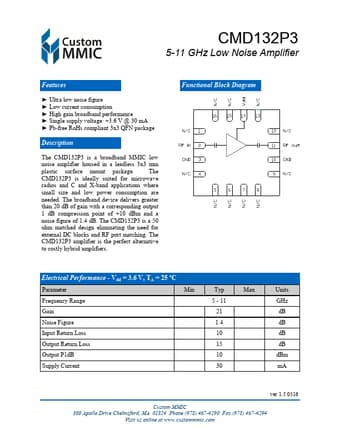

Preview of CMD132P3 PDF

Datasheet Details

Part number:

CMD132P3

Manufacturer:

Custom MMIC

File Size:

256.05 KB

Description:

5-11 ghz low noise amplifier.
