CMD196C3

DC-18 GHz SPDT Non-reflective Switch

CMD196C3 Features

* a low insertion loss of 1.5 dB and high isolation of 46 dB at 8 GHz. The CMD196C3 operates using complementary control voltage logic lines of 0/-5 V and requires no bias supply. Functional Block Diagram Key Features

* Low Loss Broadband Performance

* High Isolation

* Fast Sw

CMD196C3 General Description

CMD196C3 500 Piece 7” Reel CMD196C3-EVB 1 Piece Bag Electrical Performance (Vctl = 0/-5 V, TA = 25o C, F = 8 GHz) Parameter Frequency Range Insertion Loss Isolation Return Loss - On State Return Loss RF1, RF2 - Off State Input P1dB Switching Characteristics tRISE, tFALL (10/90% RF) tON, tOFF (5.

CMD196C3 Datasheet (555.10 KB)

Preview of CMD196C3 PDF

Datasheet Details

Part number:

CMD196C3

Manufacturer:

Qorvo

File Size:

555.10 KB

Description:

Dc-18 ghz spdt non-reflective switch.
CMD196C3 ® DC-18 GHz SPDT Non-reflective Switch Product Overview The CMD196C3 is a general-purpose broadband high isolation non-reflective MMIC SPD.

📁 Related Datasheet

CMD196 - DC-28 GHz SPDT Non-reflective Switch (Custom MMIC)
CMD196 DC-28 GHz SPDT Non-reflective Switch Features ► Low loss broadband performance ► High isolation ► Fast switching speed ► Non-reflective design.

CMD192 - DC-20 GHz Distributed Driver Amplifier (Custom MMIC)
Let Performance Drive CMD192 DC-20 GHz Distributed Driver Amplifier Features ► Ultra wideband performance ► Positive gain slope ► High output power .

CMD194C3 - 6-20 GHz Low Noise Amplifier (Custom MMIC)
CMD194C3 6-20 GHz Low Noise Amplifier Features ► Low noise figure ► High gain broadband performance ► Single supply voltage ► Pb-free RoHs pliant .

CMD195 - DC-20 GHz SPDT Non-reflective Switch (Custom MMIC)
CMD195 DC-20 GHz SPDT Non-reflective Switch Features ► Positive gain slope ► High isolation ► Fast switching speed ► Non-reflective design ► Small di.

CMD195 - SPDT Non-reflective Switch (Qorvo)
CMD195 ® DC-20 GHz SPDT Non-reflective Switch Product Overview The CMD195 is a broadband non-reflective GaAs MMIC SPDT switch in die form. The CMD1.

CMD195C3 - DC-18 GHz SPDT Non-reflective Switch (Custom MMIC)
CMD195C3 DC-18 GHz SPDT Non-reflective Switch Features ► Positive gain slope ► High isolation ► Non-reflective design ► Pb-free RoHs pliant 3x3 SM.

CMD197 - 1-24 GHz Distributed Driver Amplifier (Custom MMIC)
CMD197 1-24 GHz Distributed Driver Amplifier Features ► Wide bandwidth ► High linearity ► Single positive supply voltage ► On chip bias choke Descrip.

CMD12N10 - 100V N-Channel MOSFET (Cmos)
CMD12N10 / CMU12N10 100V N-Channel MOSFET General Description N-channel enhancement mode field-effect power transistor in a plastic envelope suitabl.

TAGS

CMD196C3 DC-18 GHz SPDT Non-reflective Switch Qorvo

Image Gallery

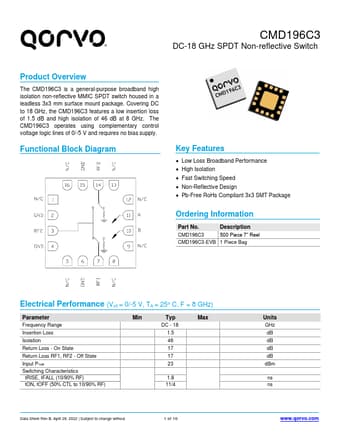

CMD196C3 Datasheet Preview Page 2 CMD196C3 Datasheet Preview Page 3
