CMD192 - DC-20 GHz Distributed Driver Amplifier

CMD192 Description

Let Performance Drive CMD192 DC-20 GHz Distributed Driver Amplifier .
The CMD192 is wideband GaAs MMIC distributed amplifier die which operates from DC to 20 GHz.

CMD192 Features

* Ultra wideband performance
* Positive gain slope
* High output power
* Low noise figure

CMD192 Applications

* Microwave radio and VSAT
* Telecom infrastructure
* Test instrumentation
* Military and space Functional Block Diagram 34 ACG1 ACG2 Vgg2 2 1 RFIN 5RFOUT & Vdd Vgg 9 GB 8 ACG4 ACG3 76 Note: Vgg2 is optional for gain control Electrical Performance - Vdd = 8.0 V, Vgg = -

📥 Download Datasheet

Preview of CMD192 PDF

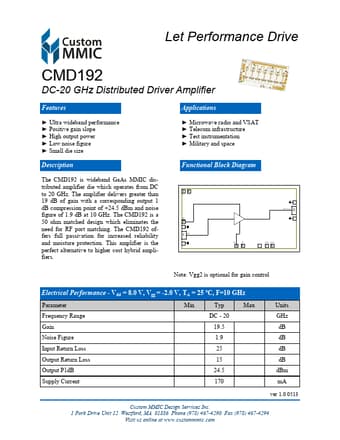

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CMD192
Manufacturer
Custom MMIC
File Size
236.30 KB
Datasheet
CMD192-CustomMMIC.pdf
Description
DC-20 GHz Distributed Driver Amplifier
