CMD181 - Fundamental Mixer

CMD181 Description

CMD181 ® 26-45 GHz Fundamental Mixer Product Overview The CMD181 is a general purpose double balanced mixer die that can be used for up- and downco.
26-45 GHz Fundamental Mixer, 100 Piece Gel Pack 1 LO 2 RF IF 3 Electrical Performance (IF = 5 GHz USB, LO = +17 dBm, TA = 25 oC, LO = 34 GHz) Par.

CMD181 Features

* Low Conversion Loss
* High Isolation
* Wide IF Bandwidth
* Passive Double Balanced Topology

CMD181 Applications

* between 26 and 45 GHz. The CMD181 has very high isolation to both the RF and IF ports due to the optimized balun structures, and can operate with an LO drive level as low as +15 dBm. The CMD181 can easily be configured as an image reject mixer or single sideband modulator with external hybrids and p

📥 Download Datasheet

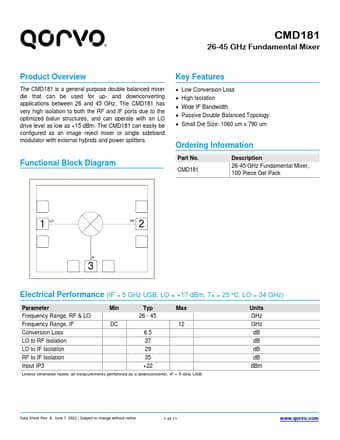

Preview of CMD181 PDF
