CMD240C4 - Distributed Amplifier

Description

DC-22 GHz Distributed Amplifier, 250 Piece 7” Reel Evaluation Board Note: Vgg2 is optional for gain control Electrical Performance (Vdd = 5.0 V, Idd = 80 mA, TA = 25 oC, F = 10 GHz) Parameter Frequency Range Gain Noise Figure Input Return Loss Output Return Loss Output P1dB Output IP3 Output IP2

Features

  • Ultra Wideband Performance.
  • Low Noise Figure.
  • Low Current Consumption.
  • Excellent Return Losses.
  • Pb-Free RoHS Compliant 4x4 QFN Package Ordering Information Part No. CMD240C4 CMD240C4-EVB.

📥 Download Datasheet

Datasheet preview – CMD240C4

Datasheet Details

Part number CMD240C4
Manufacturer qorvo
File Size 349.98 KB
Description Distributed Amplifier
Datasheet download datasheet CMD240C4 Datasheet
Additional preview pages of the CMD240C4 datasheet.

📁 Similar Datasheet

  • CMD240 - DC-22 GHz Distributed Amplifier (Custom MMIC)
  • CMD240P4 - Amplifier (Custom MMIC)
  • CMD241 - Amplifier (Custom MMIC)
  • CMD241P4 - Amplifier (Custom MMIC)
  • CMD242 - DC-40 GHz Distributed Amplifier (Custom MMIC)
  • CMD245C4 - 6-18 GHz Low Phase Noise Amplifier (Custom MMIC)
  • CMD246C4 - 8-22 GHz Low Phase Noise Amplifier (Custom MMIC)
  • CMD247 - Low Phase Noise Amplifier (Custom MMIC)
  • CMD249 - DC-20 GHz Distributed Power Amplifier (Custom MMIC)
  • CMD201P5 - DC-20 GHz Distributed Power Amplifier (Custom MMIC)
Other Datasheets by qorvo

Full PDF Text Transcription

Click to expand full text

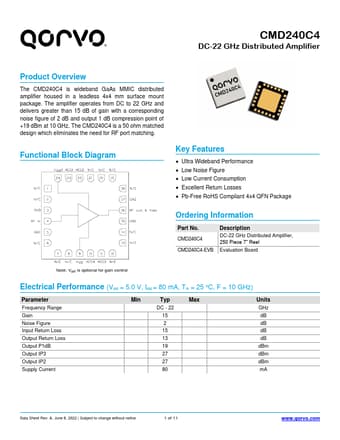

CMD240C4 ® DC-22 GHz Distributed Amplifier Product Overview The CMD240C4 is wideband GaAs MMIC distributed amplifier housed in a leadless 4x4 mm surface mount package. The amplifier operates from DC to 22 GHz and delivers greater than 15 dB of gain with a corresponding noise figure of 2 dB and output 1 dB compression point of +19 dBm at 10 GHz. The CMD240C4 is a 50 ohm matched design which eliminates the need for RF port matching. Functional Block Diagram Key Features • Ultra Wideband Performance • Low Noise Figure • Low Current Consumption • Excellent Return Losses • Pb-Free RoHS Compliant 4x4 QFN Package Ordering Information Part No.
