CMD158C4

6-16 GHz Driver Amplifier

CMD158C4 Features

* Broadband performance

* High output power

* Low current consumption

* Single supply voltage: +5.0 V @ 95 mA

* Pb-free RoHs compliant 4x4 QFN package Description The CMD158C4 is a broadband MMIC driver amplifier housed in a leadless 4x4 mm surface mount package. The CMD158C4 is

CMD158C4 General Description

The CMD158C4 is a broadband MMIC driver amplifier housed in a leadless 4x4 mm surface mount package. The CMD158C4 is ideally suited for EW and communications systems where small size and low power consumption are needed. The broadband device delivers 21 dB of gain and +21 dBm saturated output power .

CMD158C4 Datasheet (242.08 KB)

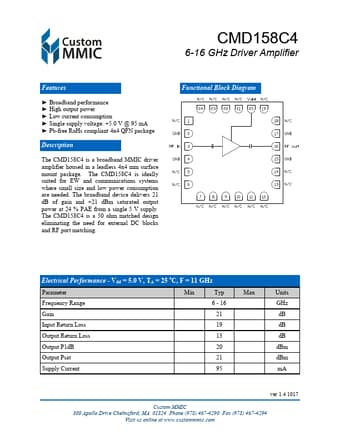

CMD158C4 Datasheet Preview — Preview of CMD158C4 PDF

Datasheet Details

Part number:

CMD158C4

Manufacturer:

Custom MMIC

File Size:

242.08 KB

Description:

6-16 ghz driver amplifier.
