CMD160

17-25 GHz Low Noise Amplifier

CMD160 Features

* Ultra low noise performance

* Low current consumption

* Small die size Description The CMD160 is a highly efficient GaAs MMIC low noise amplifier ideally suited for EW and communications systems where small size and low power consumption are needed. The device is optimized for 21 GHz a

CMD160 General Description

The CMD160 is a highly efficient GaAs MMIC low noise amplifier ideally suited for EW and communications systems where small size and low power consumption are needed. The device is optimized for 21 GHz and delivers greater than 26 dB of gain with a corresponding output 1 dB compression point of +8 d.

CMD160 Datasheet (202.86 KB)

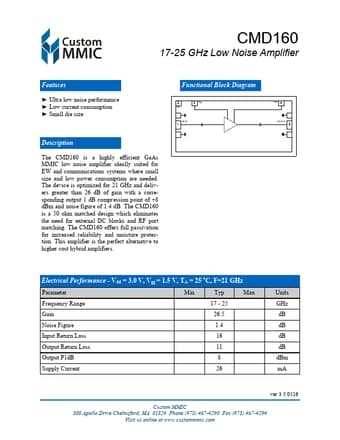

Preview of CMD160 PDF

Datasheet Details

Part number:

CMD160

Manufacturer:

Custom MMIC

File Size:

202.86 KB

Description:

17-25 ghz low noise amplifier.
