CMD184 - GaN Power Amplifier

Product Overview

📥 Download Datasheet

Datasheet preview – CMD184

Datasheet Details

Part number CMD184
Manufacturer qorvo
File Size 307.16 KB
Description GaN Power Amplifier
Datasheet download datasheet CMD184 Datasheet
Additional preview pages of the CMD184 datasheet.

Product details

Description

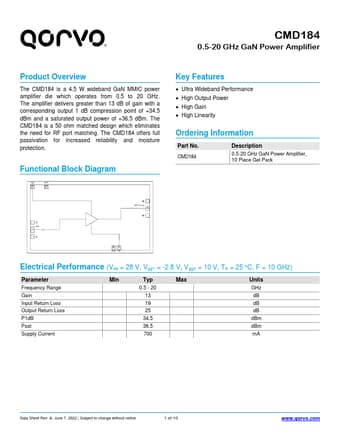

0.5-20 GHz GaN Power Amplifier, 10 Piece Gel Pack RFOUT & Vdd 4 RFIN 1 65 ACG2 Vgg1 Electrical Performance (Vdd = 28 V, Vgg1 = -2.8 V, Vgg2 = 10 V, TA = 25 oC, F = 10 GHz) Parameter Frequency Range Gain Input Return Loss Output Return Loss P1dB Psat Supply Current Min Typ Max 0.5 - 20 13 19 25 34.5 36.5 700 Units GHz dB dB dB dBm dBm mA Data Sheet Rev.A, June 7, 2022 | Subject to change without notice 1 of 10 www.qorvo.com ® Absolute Maximum Ratings Parameter Rating Drai
