CMD252C4 Datasheet - qorvo

CMD252C4 - 4GHz - 8GHz I/Q Mixer

4-8 GHz I/Q Mixer, 100 Piece 7” Reel Evaluation Board Electrical Performance (IF = 100 MHz, LO = +20 dBm, TA = 25 oC, F = 6 GHz) Parameter Min Typ Max Frequency Range, RF & LO 4-8 Frequency Range, IF DC 2.4 Conversion Loss (as IRM) 6.5 Image Rejection 30 LO to RF Isolation 52 LO to

CMD252C4 ® 4-8 GHz I/Q Mixer Product Overview The CMD252C4 is a compact I/Q mixer in a leadless surface mount package that can be used as either an image reject mixer or a single sideband upconverter.

The CMD252C4 utilizes two double balanced mixer cells and a 90 degree hybrid.

An external IF hybrid is needed to complete the image rejection.

The CMD252C4 is a much smaller alternative to higher cost hybrid image reject mixers and single sideband upconverter assemblies.

Functional Block Diagram

CMD252C4-qorvo.pdf

Preview of CMD252C4 PDF

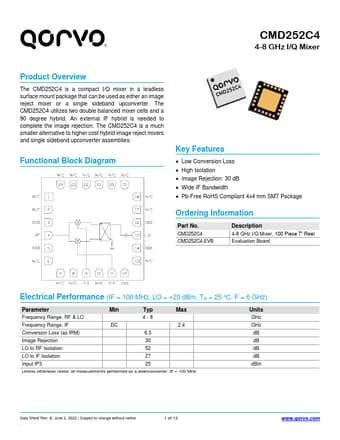

CMD252C4 Datasheet Preview Page 2 CMD252C4 Datasheet Preview Page 3

Datasheet Details

Part number:

CMD252C4

Manufacturer:

qorvo

File Size:

368.40 KB

Description:

4ghz - 8ghz i/q mixer.
