CMD264P3 - Low Noise Amplifier

Product Overview

📥 Download Datasheet

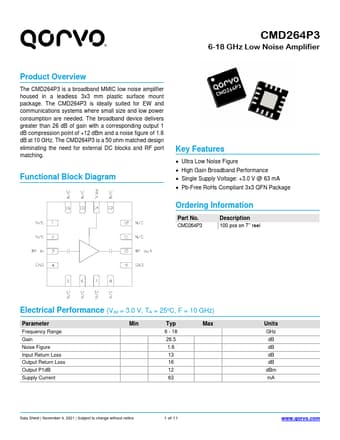

Datasheet preview – CMD264P3

Datasheet Details

Part number CMD264P3
Manufacturer qorvo
File Size 353.15 KB
Description Low Noise Amplifier
Datasheet download datasheet CMD264P3 Datasheet
Additional preview pages of the CMD264P3 datasheet.

Product details

Description

100 pcs on 7’’ reel Electrical Performance (Vdd = 3.0 V, TA = 25oC, F = 10 GHz) ) )Parameter )Frequency Range Gain Min Typ Max 6 - 18 26.5 )Noise Figure 1.6 Input Return Loss 13 Output Return Loss 16 Output P1dB 12 Supply Current 63 Data Sheet | November 4, 2021 | Subject to change without notice 1 of 11 Units GHz dB dB dB dB dBm mA www.qorvo.com ® Absolute Maximum Ratings Parameter Rating Drain Voltage, Vdd 5.0 V RF Input Power +20 dBm Channel Temperature, Tch 150°

Features
