CMD242 - Distributed Amplifier

Product Overview

📥 Download Datasheet

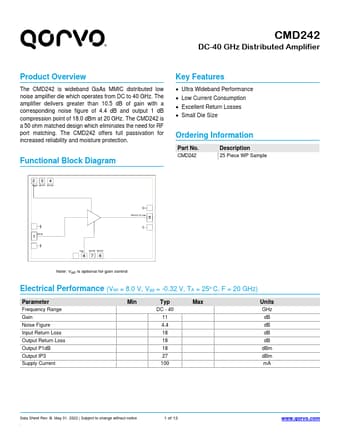

Datasheet preview – CMD242

Datasheet Details

Part number CMD242
Manufacturer qorvo
File Size 374.94 KB
Description Distributed Amplifier
Datasheet download datasheet CMD242 Datasheet
Additional preview pages of the CMD242 datasheet.

Product details

Description

25 Piece WP Sample 234 Vgg2 ACG1 ACG2 5 RFOUT & Vdd 1 RFIN Vgg ACG4 ACG3 876 Note: Vgg2 is optional for gain control Electrical Performance (Vdd = 8.0 V, Vgg = -0.32 V, TA = 25o C, F = 20 GHz) ) )Parameter Frequency Range Min Typ Max DC - 40 Units GHz )Gain )Noise Figure Input Return Loss 11 dB 4.4 dB 18 dB Output Return Loss 18 dB Output P1dB 18 dBm Output IP3 27 dBm Supply Current 100 mA Data Sheet Rev.B, May 31, 2022 | Subject to change without notice 1 of 1
