CMD245C4

6-18 GHz Low Phase Noise Amplifier

CMD245C4 Features

* Wide bandwidth

* Low phase noise

* Low current consumption

* Pb-free RoHs compliant 4x4 mm SMT package Functional Block Diagram Description The CMD245C4 is a wideband GaAs MMIC low phase noise amplifier housed in a leadless surface mount package that is ideally suited for militar

CMD245C4 General Description

The CMD245C4 is a wideband GaAs MMIC low phase noise amplifier housed in a leadless surface mount package that is ideally suited for military, space and communications systems. At 10 GHz the device delivers 18 dB of gain, a saturated output power of +21 dBm and a noise figure of 4.5 dB. Also with an.

CMD245C4 Datasheet (249.86 KB)

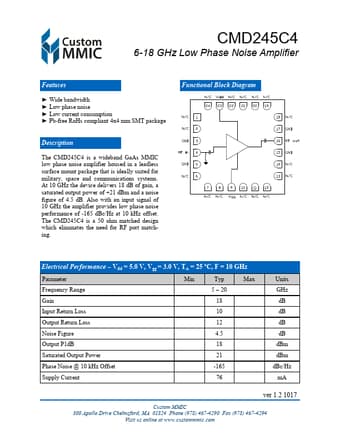

CMD245C4 Datasheet Preview — Preview of CMD245C4 PDF

Datasheet Details

Part number:

CMD245C4

Manufacturer:

Custom MMIC

File Size:

249.86 KB

Description:

6-18 ghz low phase noise amplifier.
