CMD240

DC-22 GHz Distributed Amplifier

CMD240 Features

* Ultra wideband performance

* Low noise figure

* Low current consumption

* Excellent return losses

* Small die size Description The CMD240 is wideband GaAs MMIC distributed low noise amplifier die which operates from DC to 22 GHz. The amplifier delivers greater than 15 dB of gai

CMD240 General Description

The CMD240 is wideband GaAs MMIC distributed low noise amplifier die which operates from DC to 22 GHz. The amplifier delivers greater than 15 dB of gain with a corresponding noise figure of 2.2 dB and output 1 dB compression point of 19 dBm at 10 GHz. The CMD240 is a 50 ohm matched design which elim.

CMD240 Datasheet (226.87 KB)

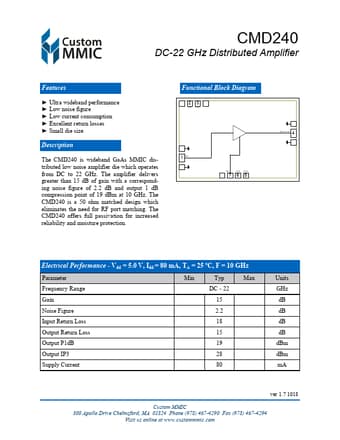

CMD240 Datasheet Preview — Preview of CMD240 PDF

Datasheet Details

Part number:

CMD240

Manufacturer:

Custom MMIC

File Size:

226.87 KB

Description:

Dc-22 ghz distributed amplifier.
