CMD242

DC-40 GHz Distributed Amplifier

CMD242 Features

* Ultra wideband performance

* Low current consumption

* Excellent return losses

* Small die size Description The CMD242 is wideband GaAs MMIC distributed low noise amplifier die which operates from DC to 40 GHz. The amplifier delivers greater than 10.5 dB of gain with a correspondin

CMD242 General Description

The CMD242 is wideband GaAs MMIC distributed low noise amplifier die which operates from DC to 40 GHz. The amplifier delivers greater than 10.5 dB of gain with a corresponding noise figure of 4.4 dB and output 1 dB compression point of 18.0 dBm at 20 GHz. The CMD242 is a 50 ohm matched design which .

CMD242 Datasheet (274.35 KB)

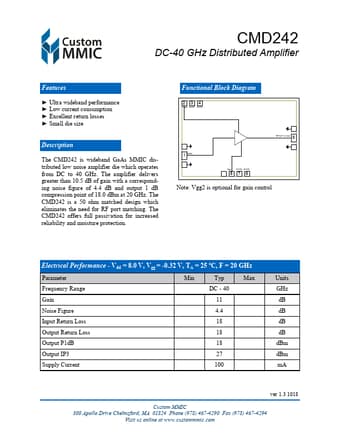

CMD242 Datasheet Preview — Preview of CMD242 PDF

Datasheet Details

Part number:

CMD242

Manufacturer:

Custom MMIC

File Size:

274.35 KB

Description:

Dc-40 ghz distributed amplifier.
